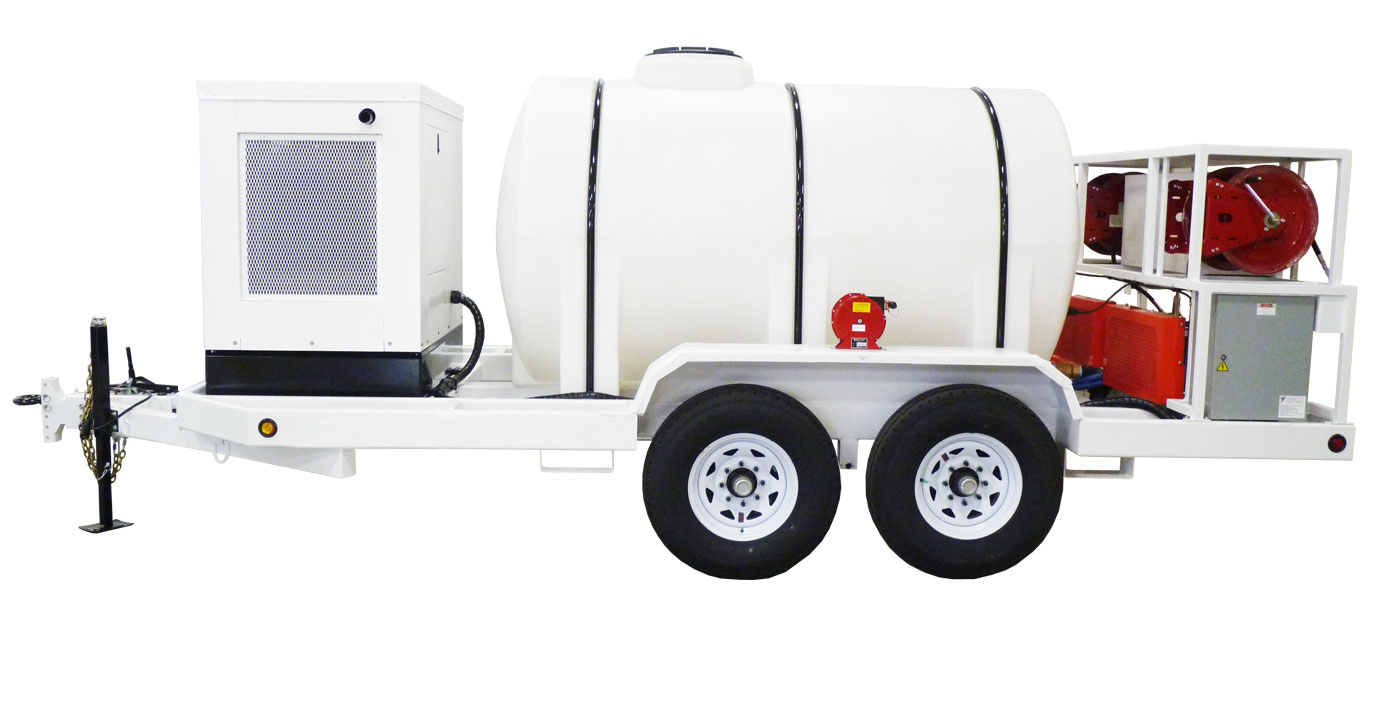

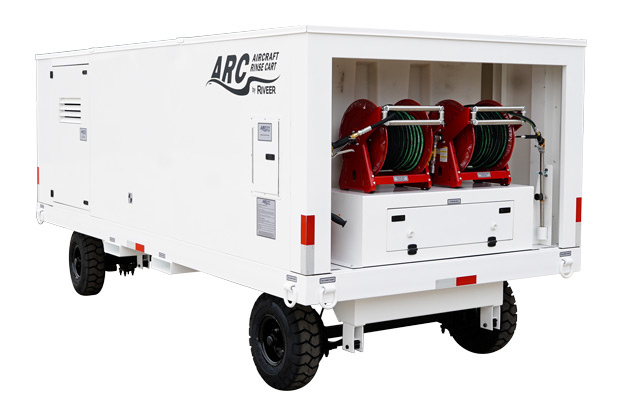

Aircraft Rinse Cart (ARC)

The Riveer Aircraft Rinse Cart (ARC)—designed in conjunction with the U.S. Navy—meets (and surpasses) the criteria for aircraft rinsing performance in harsh environments and remote airfield operations. Designed with a high-power pressure washer, the ARC is able to perform aircraft rinses and meet the rinsing and pressure guidelines in TM 1-1500-344-23-2. Both the Army and Air Force have signed with Riveer to utilize the ARC rinsing equipment in their respective fields and operations.

Some of the features of the Riveer ARC are:

  • US Navy and US Army approved for rising fixed and rotary wing aircraft
  • Safe-for-aircraft 175 PSI
  • Totally self-contained
  • Ideal for corrosion mitigation of all civil and military aircraft
  • Designed for flight light AGE towing
  • Dual wands for faster rinsing

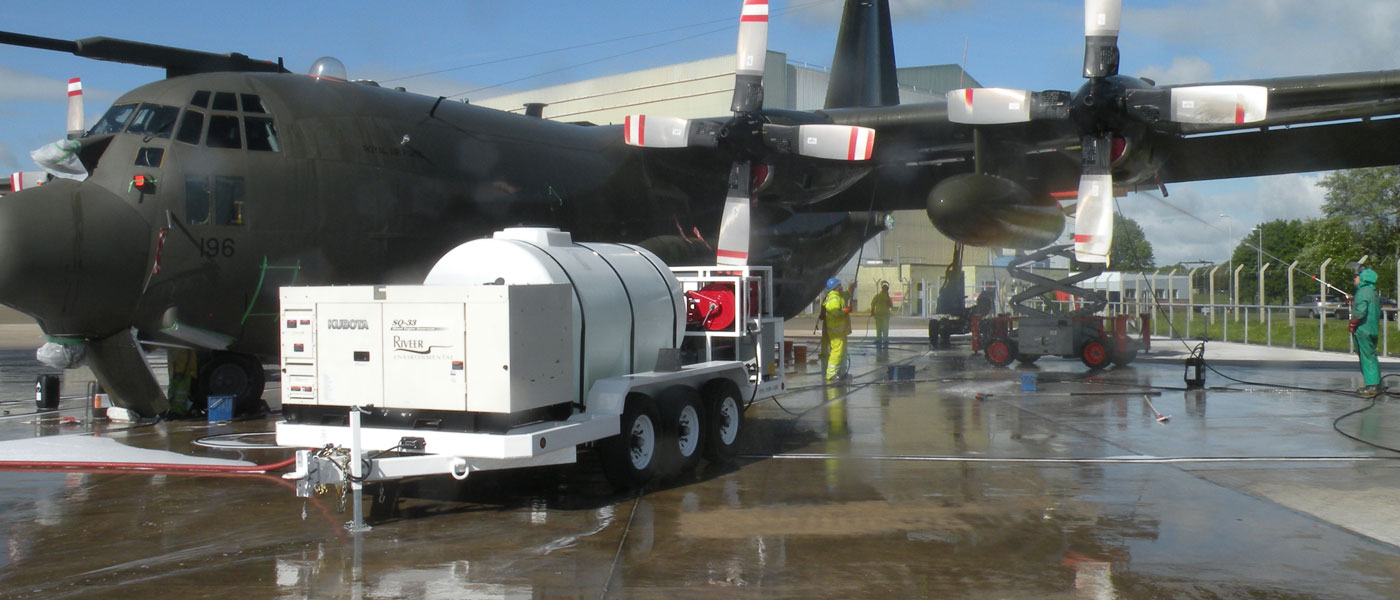

aircraft rinse cart

The ARC’s 175 PSI is safe for aircraft, spraying 12 gallons of water per minute through each wash wand. This spray helps meet strict TM requirements for aircraft rinsing and decontaminating operations. The ARC’s spray is low-pressure enough to not damage aircraft equipment, but high-pressure enough to effectively rinse common areas of entrapment.

The ARC effectively rinses large areas, greatly reducing rinse time. Dual guns on the ARC allow two users to perform the rinsing, reaching 200 total feet of surface area. When used simultaneously, the dual guns are still able to produce effective flow rates, and can easily spray an additional 40 feet for rinsing tail sections and larger aircraft. Simultaneous use of the dual guns does not negatively impact flow rates. In addition, the spray can easily extend 40′ for rising tail sections and larger aircraft.

While corrosion control is a necessity, it also shouldn’t require all of your time. Riveer’s ARC is easy to operate and maintain. The trailer-mounted, standalone unit is completely self-contained. This also means the ARC is easily transported and towed with HMMV, TUG or other common AGE. The ARC features a 6 to 28 inch tall tow bar, surge brakes, stout and full boxed trailer construction.

It also includes a 7000 axle set rating. Baffles help stabilize the ARC’s tank by minimizing the free-surface affect. Riveer’s ARC is transportable in accordance with MIL-STD-209, 1791, and 913.

It can also operate in a variety of environmental conditions, whether you’re in subzero temperatures or the desert. You also do not need to spend hours of training—the GripStart system uses one button to start and stop the unit and also includes automatic start and shutdown technology for the pumping cycle. This ensures minimal pump wear. The ARC also does not require calibration.

ARC operates on JP-8 and other common aircraft fuels or diesel. On-board or external supplies of water can be used to supply the ARC. A 1000-gallon tank holds fresh water, allowing for a continuous and length run time when no water is nearby.

aircraft rinse carts

ADDITIONAL FEATURES:

  • Run dry protection
  • Auto fill for unattended fill-up
  • Low RPM CARB tier 3 Generator
  • AGE retracting grounding cable
  • AGSE parking brake and DOT trailer
  • Min 12-hour operation with on-board fuel
  • On-board storage for components, spares, support equipment
  • NEMA 4 electrical construction
  • Water-cooled low RPM diesel generator
  • Variable angle spray nozzle
  • Advanced AGM battery for long storage life and exceptional power
  • Fully ruggedized structure with custom frame to provide a low center of gravity
  • Perimeter protection bumper to prevent damage to frame
  • Automatic shut-down for low pressure, high temp, low Hz or high Hz
  • Full protection circuitry for pumps, motors, and generator
  • IEC CE standard components
  • Easily drained for storage and transport with large dump valves
  • Available with hot water
  • Available with 2 additional guns (simultaneous use for 4 users)

While corrosion control is a necessity, it also shouldn’t require all of your time. Riveer’s ARC is easy to operate.

Aircraft Washing System (AWS)

The U.S. Army and Riveer teamed up to develop the Aircraft Washing System or AWS for aircraft cleaning in Kuwait. The harsh desert environment was of noticeable concern, as was the need to reliably work in remote operations. The AWS’s superior design includes a pressure washer rated to perform aircraft washes and meet the washing and pressure guidelines in TM 1-1500-344-23-2. Riveer has gained competitive contracts for AWS equipment from both the Army and Navy.

SOME FEATURES OF THE AWS INCLUDE:

  • US Navy and US Army approved for rising fixed and rotary wing aircraft
  • 140°F Hot Water Wash and Rinse
  • Optional higher flow foam gun
  • Completely self-contained
  • Safe-for-aircraft 175 PSI
  • Ideal for anti-corrosion PM of civil and military aircraft
  • Easily transported
  • Dual wands for faster washing
aircraft washing system

Not only is the AWS easy to operate and maintain, but its trailer-mounted unit is completely self-contained. The AWS is also able to operate in a variety of environmental conditions from 34 degrees F to 140 degrees F. Minimal operator training is required, as the one-button GripStart system starts and stops the unit and all pumping and shutdown is automatic.

The AWS features a 175 PSI that is safe for aircraft, spraying 12 gallons of water per minute through each wash wand. This spray helps meet strict TM requirements for aircraft rinsing and decontaminating operations. The ARC’s spray is low-pressure enough to not damage aircraft equipment, but high-pressure enough to effectively rinse common areas of entrapment.

The AWS’s high flow cuts cleaning time dramatically by effectively and efficiently washing large areas. A built-in air powered high-pressure foamer can cover the side of an H-60 in 60 seconds or fewer. The system’s efficiency is further supported by dual guns, which allow for two users to reach a total of 200 feet. In addition, the system can easily spray 30′ in order to clean large structures.

While corrosion control is a necessity, it also shouldn’t require all of your time. Riveer’s ARC is easy to operate and maintain. The trailer-mounted, standalone unit is completely self-contained.

This also means the ARC is easily transported and towed with HMMV, TUG or other common AGE. The ARC features a 6 to 28 inch tall tow bar, surge brakes, stout and full boxed trailer construction. It also includes a 7000 axle set rating. Baffles help stabilize the ARC’s tank by minimizing the free-surface affect. Riveer’s ARC is transportable in accordance with MIL-STD-209, 1791, and 913.

ARC operates on JP-8 and other common aircraft fuels or diesel. On-board or external supplies of water can be used to supply the ARC. A 1000-gallon tank holds fresh water, allowing for a continuous and length run time when no water is nearby.

aircraft washing systems

ADDITIONAL FEATURES:

  • Water-cooled diesel engine
  • 20-gallon soap concentrate capacity
  • Adjustable water/soap mixture up to 25:1
  • 6″ to 28″ tow bar height
  • Tow with HMMV, TUG, or other common AGE
  • LED recessed light package
  • Hot water to 140F
  • Fully boxed custom frame
  • Surge brakes
  • Transportable in accordance with MIL-STD-209, 1791, and 913.
  • Unrestricted highway use
  • Turbine engine wash capability (TEWS)
  • Run dry protection
  • Auto fill for unattended fill-up
  • Low RPM CARB tier 3 generator
  • AGE retracting grounding cable
  • Self contained and stand-alone
  • AGSE parking brake and DOT trailer
  • 12-hour operation with on-board fuel
  • Internal and externally air transportable
  • On-board storage for components, spares, support equipment
  • NEMA 4 electrical construction
  • The only AWS that fits in a standard 20′ ISO shipping container for OCONUS shipments

The U.S. Army and Riveer teamed up to develop the Aircraft Washing System or AWS for aircraft cleaning in Kuwait.

TOTAL AIRCRAFT WASHING SYSTEM (TAWS)

Full Power. Hot Water. Rinse and wash. The Riveer Total Aircraft Washing System (TAWS) is the total package, producing high-flow rates that greatly reduce cleaning time while still effectively washing large surfaces. With a built-in air powered high-pressure foamer, the TAWS can cover the side of a CH47 (750 sq. ft) in less than 60 seconds. The TAWS’s efficiency is further supplemented by dual guns for two users and 200′ of total reach. And even while used simultaneously, will still produce high flow rates.

SOME FEATURES OF THE TAWS INCLUDE:

  • US Navy and US Army approved for rinsing fixed and rotary wing aircraft
  • 140°F Hot Water Wash and Rinse
  • Proprietary Turbine Engine Flush
  • High Pressure Foamer
  • Safe-for-aircraft 175 PSI
  • Completely self-contained
  • Built-in high flow air powered foamer
  • Ideal for anti-corrosion PM of civil and military aircraft
  • Easily transported with highway approved lights and brakes
  • Dual wands for faster rinsing
total aircraft washing system

The spray can also easily reach 30 additional feet for cleaning large aircraft and tail sections. To lessen the possibility of mess, all hoses are on reels, and all guns have storage brackets and fit inside toolboxes for easy storage.

Each gun sprays 5 gallons of 140-degree water per minute, operating at a safe 175 PSI. These specifications meet the strict TM requirements for aircraft wash, rinse and decontamination procedures.

The system is low-pressure enough to be safe for the aircraft, but high-pressure enough to reach exposed steel, hinges, actuators, gear bays and other corrosion-prone areas. Quick connect yoke gives the user 10 GPM to reach 30’ high surfaces, such as tail sections.

total-aircraft-washing-system-taws
riveer-total-aircraft-washing-system-taws

SIMPLE AND FAST OPERATION

Not only is the TAWS easy to operate and maintain, but its trailer-mounted unit is completely self-contained. The TAWS is also able to operate in a variety of environmental conditions from 34 degrees F to 140 degrees F. Minimal operator training is required, as the one-button GripStart system starts and stops the unit and all pumping and shutdown is automatic.

TAWS operates on JP-8 and other common aircraft fuels or diesel. On-board or external supplies of water can be used to supply TAWS. A 1000-gallon tank holds fresh water, allowing for a continuous and length run time when no water is nearby.

TURBINE ENGINE FLUSH

The turbine engine flush is one of the most advanced elements of technology of the TAWS. Turbine cleaning requires low-pressure and low-flow pumping, both of which the TAWS features. Reels, fittings, and air and flush hoses are available for various turbine engines. TAWS effectively cleans aircraft engines by delivering gas path cleaner from an on-board tank. It then sends rinse water directly into the compressor and hot section of the aircraft’s engine. Flow is set at 1 to 2.5 GPM and does not exceed 45 PSI for this application. TAWS engine flush technology is compatible with H-47, H-58, H-60 and H-64 aircraft, and many others.

MEETS STRICT GUIDELINES

Riveer TAWS was designed with the U.S. Army for the purpose of aircraft cleaning in Kuwait. Top concerns were the harsh desert environment and the need for reliable systems in remote operations. This superior design, including a pressure washer rated to perform aircraft washes and meet the washing and pressure guidelines in TM 1-1500-344-23-2, has won Riveer competitive contracts for washing system equipment from both the Army and Air Force.

EASILY TRANSPORTABLE

Another benefit of the TAWS is its ability to be easily transported. It can be towed with HMMV, TUG, or other common AGE. It has a 6 to 28-inch tall tow bar and features stout and fully boxed trailer construction with a 7000# axle set rating. The TAWS also includes recessed 12v/24V LED lighting and a NATO standard plug. Kevlar®Reinforced Goodyear® tires are resistant to tears and punctures round out the list of high-quality transportation features that come together to make moving the TAWS a simple process.

ADDITIONAL FEATURES:

  • 10-gallon soap concentrate capacity
  • 10-gallon gas path solution tank
  • Run dry protection
  • Full enclosure for engine and pumps
  • NEMA 4 electrical construction
  • AGSE parking brake and DOT trailer
  • Unique hinged engine cover with 360-degree access to all service components
  • Kubota®water-cooled diesel engine coupled with Cat® pressure pump.
  • Easily drained for storage and transport with large dump valves
  • Dexter® axles with load sharing spring perches keep consistent tongue weight
  • 1600# tongue jack with fast pin
  • HD structure with custom frame to provide a low center of gravity
  • Perimeter protection bumper to prevent damage to frame
  • Fenders are tough stand on bumpers for access to the top of the water tank
  • Advanced AGM battery for long storage life and exceptional power
  • LED light package conforms with DOT requirements, recessed within frame for protection
